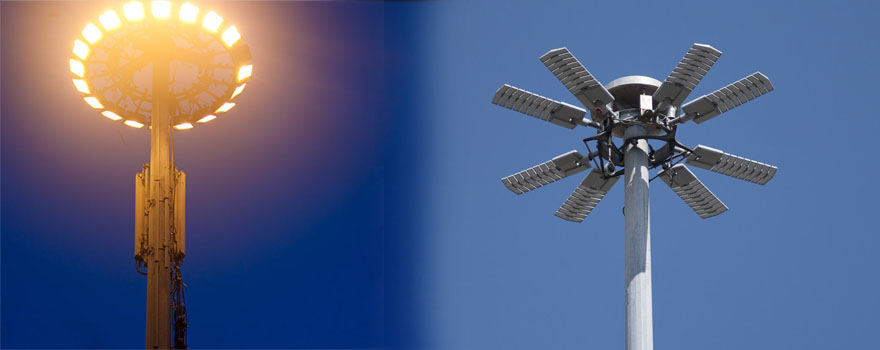

High Mast Poles

High mast lighting is today preferred over conventional lighting. Especially where large areas are to be illuminated. This system eliminates the need for numerous lighting columns which, under certain circumstances, can pose hazardous to movement. This is possible because the high mast lighting system achieves very large space to height ratios.

High-mast lighting is ideal for industrial or commercial areas, docks, airports, flyovers, stations, car parks and even some hazardous areas. All of these require the best possible lighting with minimum interference from the installation itself combined with ease of maintenance.

Mast Structure

High mast is continuously tapered; polygonal cross section of 12 to 20 sides fabricated from special steel plates, and is delivered at site in sections. Sections are joined together by slip-stress-fit method and are provided with fully penetrated and welded flange. The design is based on proven in-tension design conforming to the Technical Report No 7-1996, Institution of Lighting Engineers. UK. This ensures assured performance and reliable service. The structure is suitable for loading as per IS 875 (part3) 1987.

Construction

High mast is fabricated from steel plates conforming to BSEN 10025, GR-S255 JO or equivalent as per customer's requirement, cut and folded to form a polygonal section. Masts come in two sections for 16 & 20 Mtr and in three sections for 25 & 30 Mtr heights and are only longitudinally welded, conforming to BS 5135/AWS. The mast is provided with a fully penetrated flange, which is free from any laminations or incursions. The welded connection of the base flange is fully developed to the strength of the entire section. The base flange is provided with supplementary gussets between bolt holes to ensure elimination of helical stress concentration. For environmental protection of the mast, the entire fabricated mast is Hot dip Galvanized (Single Dip) internally and externally, that results in uniform coating thickness of 65 to 85 as per sheet thickness & maintaining BSEN ISO-1461 or equivalent.
